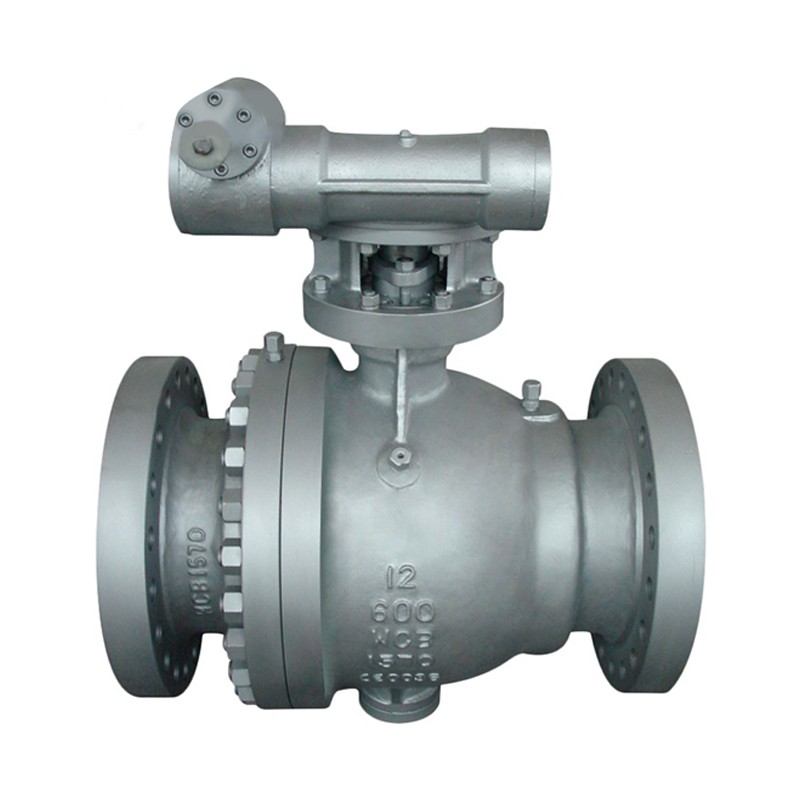

Válvula de bola con caja engranaje

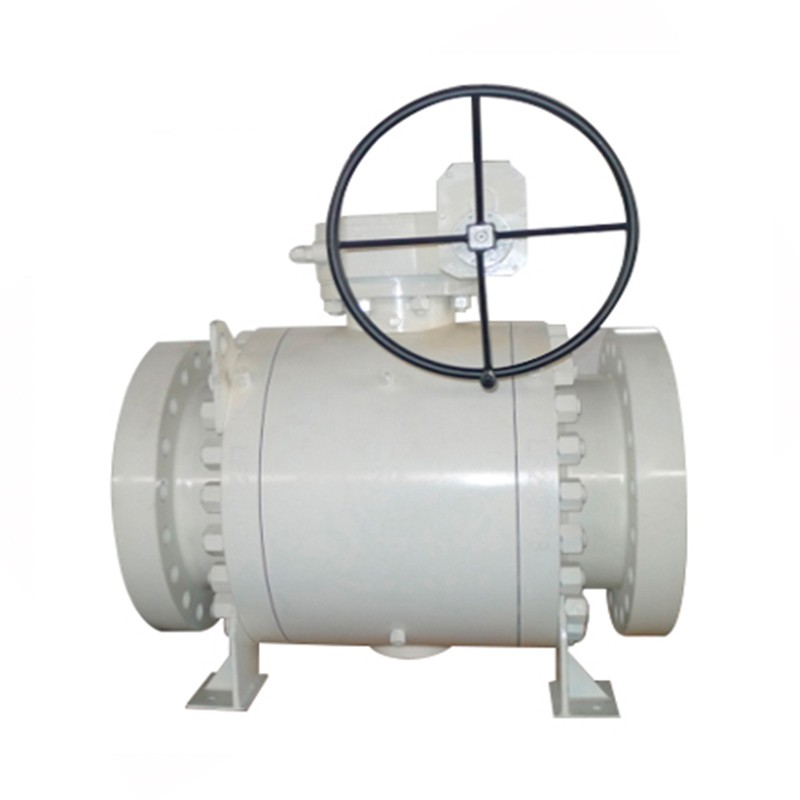

Válvula de bola con caja engranaje de 3 cuerpos lateral , tipo 3-PC.
Descripción
Válvula de bola con caja engranaje de 3 cuerpos lateral , tipo 3-PC.
| Product | Side Entry Trunnion Mounted Ball Valve | |
| Nominal diameter | 2″ – 56″ | (DN50-DN1400) |
| Design temp. | -46℃ – 121℃ | |
| Design pressure | class 150 – 2500 | (PN16-PN420) |
| Material | WCB, LCB, CF8M, A105, LF2, F316 | |
| Design standard | API 6D, ISO 17292 | |
| Face to face | ASME B16.10 | EN558 series |
| Connection end | ASME B16.5, ASME B16.25 | EN1092-1 series |
| Test standard | API 598, API 6D | EN 12266-1 |
| Operation | level, worm gear, electric, pneumatic | |
| Application fields | water, petroleum and natural gas | |
| Feature 1 | full bore, reduce bore | |
| Feature 2 | locking device | |
| Feature 3 | anti-blow out stem | |
| Feature 4 | fire safe and Anti-static device | |
| Feature 5 | DBB / double block and bleed | |
| Feature 6 | stem & seats to be equipped injection fitting | |
